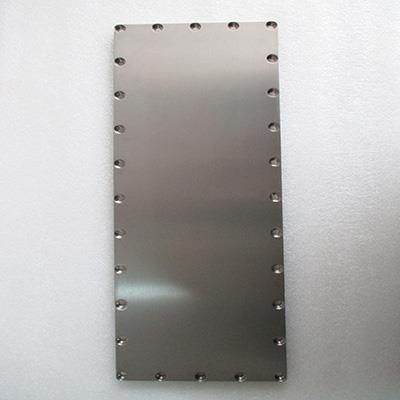

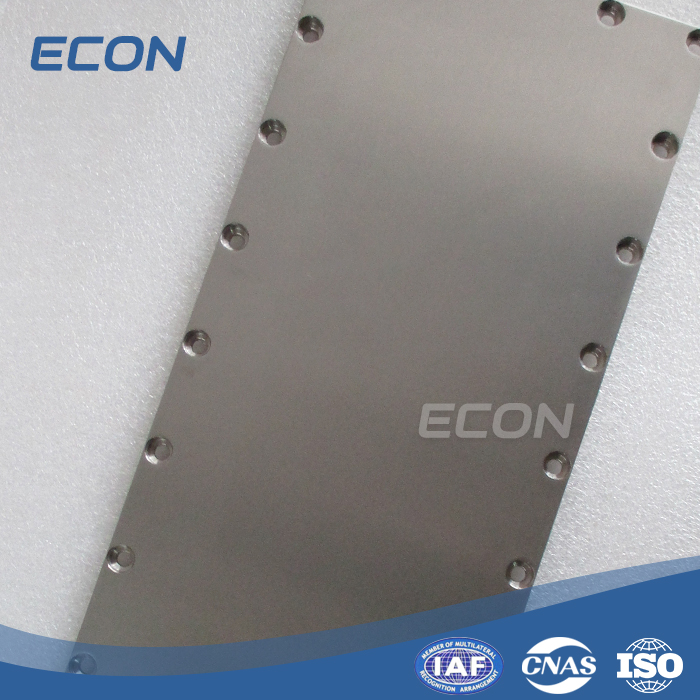

GR2 Titanium target
Description:
1.Product name:GR2 Titanium target
2.Grade:GR2 Titanium,GR4 Titanium,GR5 Titanium
3.Standard:ASTM B348 ，ASTM B381
4.Size:500mm x 175mm x 10mm or per customer drawing
Titanium target manufacturing process:
1.Hot-forging:Forging process above recrystallization temperature of metal
2.Hot-rolling:Rolling process at higher than recrystallization temperature
3.Cold rolling:Rolling process with plastic deformation temperature lower than recovery temperature
4.Annealing:A metal heat treatment process in which the metal is slowly heated to a certain temperature for a sufficient time and then cooled at an appropriate rate (usually slow cooling, sometimes controlled cooling).
5.Pickling:The parts are immersed in an aqueous solution such as sulphuric acid to remove oxide and other thin films on the metal surface.
Application and Performance Analysis of Titanium Target Material
Titanium (Ti) target material has been widely used in various fields such as semiconductors, solar cells, magnetic storage, and decorative coatings due to its excellent physical and chemical properties. In this article, we will analyze the application and performance of titanium target material and its material properties.
Application Analysis：
Semiconductor Industry: In the semiconductor industry, titanium target material is mainly used in the production of integrated circuits, memory chips, and other related electronic devices. It is employed as a liner, barrier, or adhesion layer for the deposition of conductive thin films. Ti films also have high adhesion, low resistivity, and excellent compatibility with other materials used in microelectronics including copper, tungsten, and aluminum.
Solar Cells: Titanium target material is used in the manufacturing of thin-film solar cells. It acts as a back electrode layer in amorphous silicon (a-Si) and cadmium telluride (CdTe) solar panel designs. Ti has a high work function and mechanical strength, making it an ideal material for this application.
Magnetic Storage: In the magnetic storage industry, titanium target material is used to produce hard disk magnetic recording media. It provides a high corrosion resistance and good adhesion to the substrate. Ti films have high coercivity, high permeability, and low magnetic noise, which make them suitable for magnetic thin film applications.
Decorative Coatings: Ti target material is used extensively in the decorative coatings industry. It can be used as a coating material for jewelry, watches, and other luxury goods. The resulting coatings usually exhibit a high-quality color and gloss, are wear-resistant, and have good biocompatibility.
Performance Analysis：
Physical Properties: Titanium is a lustrous, silvery-white metal, with good heat and electrical conductivity. It has a low density of 4.54 g/cm3, which is about 60% that of steel. Ti is non-magnetic and has a melting point of 1,668°C. It is also highly resistant to corrosion, with a passive oxide layer forming on its surface.
Chemical Properties: Titanium exhibits high chemical stability and is highly resistant to corrosion. It does not react with hydrochloric or sulfuric acid at room temperature, but reacts slowly with nitric acid. Exposed to high-temperature environments, it can react readily with oxygen, nitrogen, and carbon to form mixed oxides, nitrides, and carbides.
Material Analysis：
Titanium target material is usually produced by cold rolling and hot forging. The purity of Ti targets varies depending on the application requirements. The most commonly used Ti purity levels are 99.99%, 99.995%, and 99.999%. High-purity titanium target material is required in the semiconductor and solar cell industries, where purity levels above 99.99% are essential.
Conclusion：
Titanium target material plays a significant role in various fields such as the semiconductor industry, solar cells, magnetic storage, and decorative coatings. Its excellent physical and chemical properties make it an ideal material for these applications. High-purity titanium target material is typically used in the semiconductor and solar cell industries, where stringent purity requirements are necessary.
About us:
Q: Are you trading company or manufacturer ?
A: We are a trading company integrating production and sales, with more than 20 years of experience in the production and processing of refractory metals.
Q: How long is your delivery time?
A: Generally,it will take around 30 days after order confirm.The specific delivery time depends on the specific product and the quantity you needed.
Q. Do you test all your goods before delivery?
A: Yes, we will do 100% test on our cemented carbide products before delivery.
